Product Description::

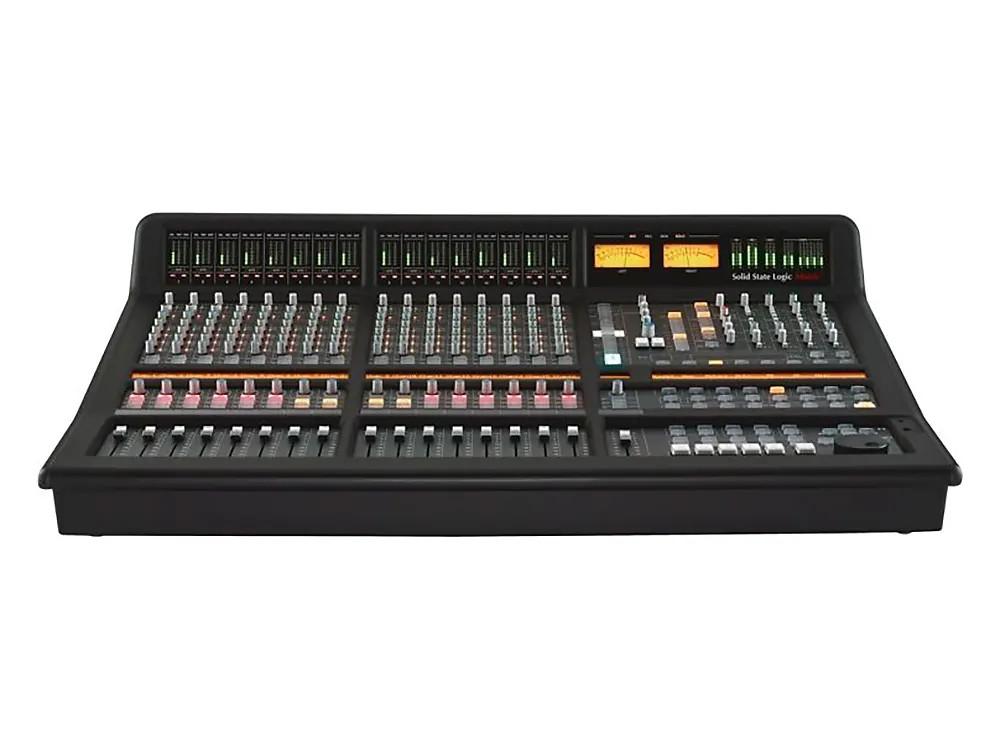

The SSL Matrix 2 δelta combines the superior sound quality of analog summing with the flexible workflow of digital control surfaces. With 16 line-level inputs, an intuitive Insert Router, and a 40-input summing mixer, the Matrix 2 is the perfect bridge between the analog and digital domains.
ANALOG MIXING
The Matrix 2 offers total tactile control over your mix with 32 channel inputs and 16 of SSL’s latest SuperAnalogue channel strips. Each channel is equipped with two line-level inputs and a dedicated channel output via DB25 cables. Each channel also features one stereo and four mono aux sends for flexible signal routing. Dial in the perfect effects levels using four stereo returns. Two stereo mix busses with dedicated inserts offer rich analog summing for 40 total inputs.
FLEXIBLE OUTPUTS
The newly-designed Insert Router is like having a 32x16x16 digital patch bay built right into your console. Connect up to 16 hardware devices and route signals to different channels as needed. Speed up your workflow with fully recallable signal chains.
Monitor mixes in stereo or 5.1 surround sound using two monitor sets of monitor outputs for quickly switching between monitors. Quickly reference tracks on smartphones or laptops using the 3.5mm stereo front panel monitor input. Create a separate monitor mix for performers using the built-in Artist Monitor section.
DIGITAL CONTROL
Matrix 2 is more than just an analog summing mixer in the shape of an SSL console—it also offers full control over Pro Tools, Logic, Cubase/Nuendo, Ableton Live and Studio One. Using a simple ethernet connection, you can control plug-in parameters using analog faders and pots.
Program advanced console automation using Matrix 2’s 16 channel faders, directly from your DAW using the δ-Ctrl Single Fader Plug-in. And with Total Recall capability, you can recreate any mix with the click of a button.
FEATURES:
δelta control automates your console within your DAW like a plug-in
32 x 16 x 16 'Insert Router' for up to 16 external hardware processing devices
Hardware processors can be inserted via console controls or cross platform drag and drop software browser
Stereo or 5.1 EXT monitoring outputs with independent Main and Mini monitor control
Hardware processors can be inserted individually or as 'chains'40 input SuperAnalogue summing console
Stereo Aux Send and 4 x Mono Sends per channel
4 Stereo Returns with full stereo mix bus routing
Dual Stereo Mix Busses with summing Inserts and reassign'In Line' DAW monitoring with 'SuperCue' headphone mode
Stereo or 5.1 External Monitor inputs
Stereo digital I/O (S/PDIF, AES/EBU) with SSL converter technology
iJack front panel Monitor input
Heavy duty external PSU16 analog line channels with two inputs per channel
Artist Monitor output with independent EQ and monitor source selection
Single button push flips control between the analog signal path and DAW software
Multi-layer control of up to four DAWs simultaneously
Ergonomically advanced hybrid hardware control surface
Digital scribble strips for constant visual feedback
Fader-linking for analog channels
Additional motorized 'Focus' fader for simultaneous DAW/Console control
16 channel strips each with motorized fader and assignable rotary encoder
Total Recall for analog console controls
General purpose MIDI controller mode
A-FADA or MIDI Fader automation
Ethernet MIDI connectivity
Simple drag and drop insert router page for configuring hardware device chains and loading inserts
Intuitive cross platform remote browser for system configuration and project management
Cross platform 'Logictivity' remote browser interface
Programmable hardware buttons for sending of standard USB keyboard commands
